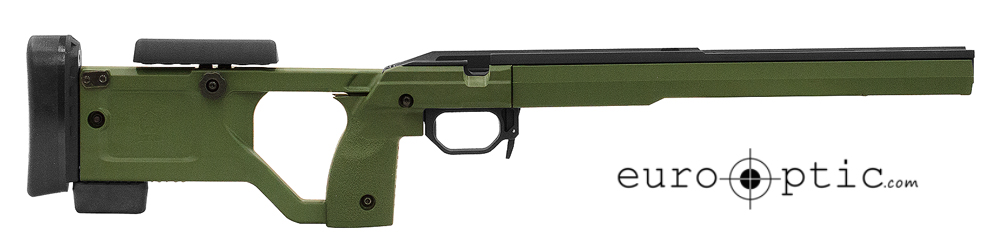

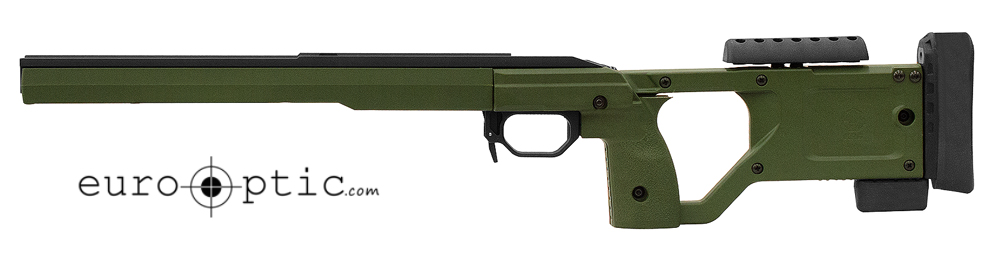

Kinetic Research Group’s X-RAY has similar ergonomics to the KRG’s Whiskey-3 chassis with more adjustability to the length of pull. KRG kept all the same features that shooters want and kept the production cost down to make this great hybrid aluminum and polymer chassis.
Forend
PolymerMounting holes will take L2 Picatinny rails, Tripod Mount, etcAccess hole for action mounting screw (allows the action to be removed without the forend having to be removed)Chassis
PolymerV-bedding system that is CNC’d into aluminumHardened stainless steel recoil lugRem 700 chassis can accommodate larger aftermarket recoil lugsWill accept barrel contour up to 1.15” straight cylinder (Will have clearance for the standard 1.25” barrel shank for about 4” past the action face)Trigger Guard/Mag catch
Aluminum with similar shape to the TRG trigger guardWill accept stock Tikka T3 triggers or Barnard triggersRem 700 chassis will accept the new x-mark triggers and most aftermarket triggersMag catch is low profile to reduce snags but still provides excellent ergonomics and control (extender button is an optional item)Magazines Used
AICS 5 or 10 rounds mags (not included)If used with the Tikka T3, it can be used with or without front spacer plateIf used with the Remington 700, the spacer plate must be used unless the rifle has a modified actionCheekpiece/Handgrips
1” travelQuickly removed and re-installed using a clamp and thumbscrew designSimple feature allows the cheekpiece to return it to the exact height it had been setCan be moved forward and backward with one alternate positionMade of polymerButtstock
PolymerHeavy internal ribbingThumbshelf for same-side-thumb-gripQD sling mount on each sideButtpad has vertical adjustability with a hex wrench (pattern is for a Remington 700 which allows for installation of aftermarket pre-fit pads)Length of Pull
Length of Pull can be adjusted with 3/8” spacers for a total of 2 ¼” adjustmentLength of Pull varies slightly between versions from 12.7” to 15”Comes with 3 spacers for a max length of pull of 13.8”Mounting Features
External QD cup on each side of buttsockHarris bipod stud on forendSpigot mount and Ambi QD plate can be mounted for additional attachmentsComes with MOE L2 and L3 railsMaterials/Finishes
Most Aluminum parts are Type III hard anodizedMost fasteners are stainless steel with black oxide coatingSteel parts are salt bath nitrided or stainless steelGrip panels are injection molded reinforced polymerThe X-RAY Chassis is available for the following inlets:
Tikka T3 (non-magnum length calibers)Remington 700 (short and long action)Download the X-Ray Chassis Installation Instructions here.
Specifications:
