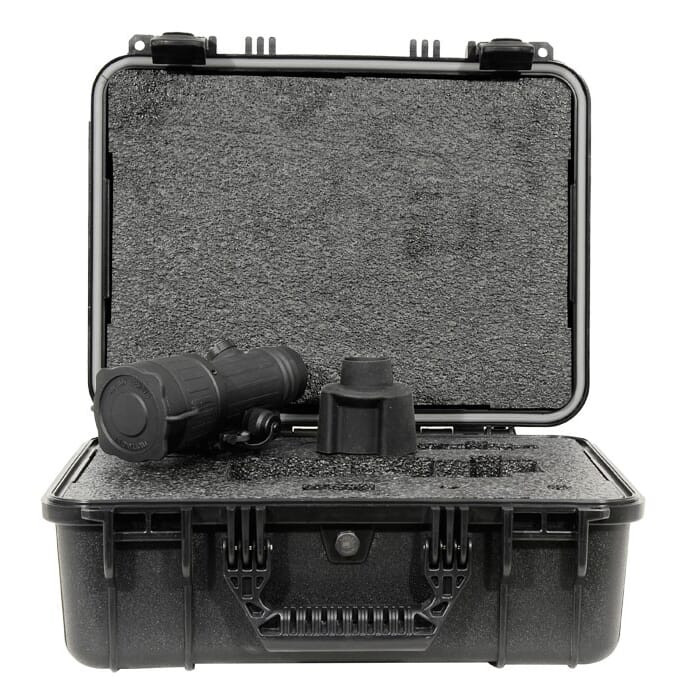

ATN PS40-HPT - Day Night Weapon Sight NVDNPS40H0

Representing the latest advancement in Night Vision optics, the ATN PS40-HPT gives your daytime scope Night Vision capability in a matter of seconds. The ATN PS40-HPT mounts in front of a daytime scope to enable nighttime operation. No shift of impact, no need to rezero nor change of eye relief occurs. The ATN PS40-HPT uses the latest in image intensifier tube technology for outstanding resolution and performance. Precision optical alignment is essential for a front sight system to work properly. This is why each ATN PS40-HPT is individually tested and aligned on an optical scale by our engineers to provide perfect alignment. The ATN PS40-HPT is one of the most compact and lightweight NV systems in its class, at only 840 grams. ATN PS40-HPT Features:

• Easily changes daytime scope to Night Vision
• Mounts in front of daytime scope, no re-zeroing required
• Multi-coated all-glass optics
• Fast catadioptic front lens system
• Large 40 mm eyepiece/output window
• Lightweight and rugged
• Comes with Quick Release Mount
• Optional 7/8 weaver mount
• Optional Scope Mounting System attaches the PS40 unit to the objective of the day scope (47-50; 56-58.7 mm diameter)
• Automatic brightness control
• Limited Two-Year Warranty

ATN PS40-HPT Specs:

• Total Darkness IR System = Yes
• SMART Technology = No
• IIT Generation = HPT
• Photocathode Type = Multi - Alkali
• Resolution = 54-72 lp/mm
• Signal to noise ratio = 16-24
• Figure of merit = 1600 typical
• Magnification = 1x
• Lens System = F1:1.44, 80 mm
• Proshield Lens Coating = Yes
• FOV = 12
• Exit Pupil = 40 mm
• Range of Focus = 10 m to infinity
• Diopter Adjustment = No
• Controls = Direct
• Remote Control = Yes
• Automatic Brightness Control = Yes
• Bright Light Cut-off = Yes
• Infrared Illuminator = Detachable IR450 (optional)
• IR Indicator = Yes
• Low Battery Indicator = Yes
• Power Supply = 1x1.5 V AA type battery or 1x3 V CR123A type battery
• Battery Life = 60 hours (3 V) 30 hours (1.5 V)
• Reticle System = No
• Windage & Elewation Adjustment = No
• Environmental Rating = Waterproof
• MIL-STD-810 = Yes
• Operating Temperature = -20 to +50C
• Storage Temperature = -50 to +50C
• Dimensions = 177 x 85 x 83 mm 7.0x3.4x3.3
• Weight = 0.84 kg / 1.85 lbs
• Warranty = 2 years
