Compact and lightweight, rugged (metal, not plastic) and a top-notch performer, the
ATN NVG7-3 is an exceptional choice for hands free usage. The
ATN NVG7-3 is a single tube Night Vision Goggles built around High Grade 18 mm Gen. 3 Image Intensifier Tube and utilizes a pseudo-Binocular design for added observation convenience. It has a built-in IR light source for close-up illumination in complete darkness. High-resolution Gen. 3 Image Intensifier Tube, auto-brightness, bright source shut-off. The
ATN NVG7-3 is an excellent choice for Law Enforcement such as SWAT and Defense Forces.
3rd Gen. Image Intensifier Tubes
Top of the line 3rd Generation Select Alpha Tubes. These IITs are hand-picked to provide the highest quality and performance. The majority of the specifications of these IITs meet Military Specifications. Many of our 3A IITs are Thin Filmed. Units with 3A Select Alpha IITs have a guaranteed resolution of 64 lp/mm and a minimum Signal-to-Noise Ratio of 20.
Description
The

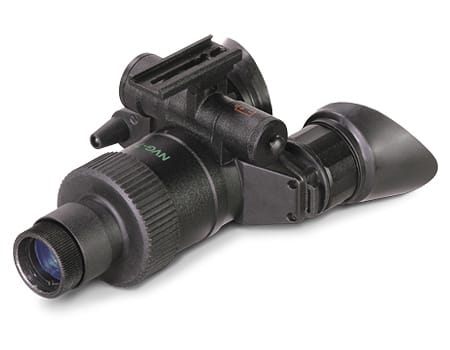

ATN NVG7-3 is a single-tube Night Vision Goggles built around High Grade 18 mm Gen. 3 Image Intensifier Tube and utilizes a pseudo-Binocular design for added observation convenience. The
ATN NVG7-3 Night Vision Goggles has a built-in IR light source for close-up illumination in complete darkness. Lightweight, rugged and a top-notch performer, the ATN NVG7-3 Night Vision System is an exceptional choice for hands free usage. The ATN NVG7-3 is available with a wide range of Image Intensifier options to meet a wide array of specification requirements.
Features
- Lightweight, compact rugged Goggle system

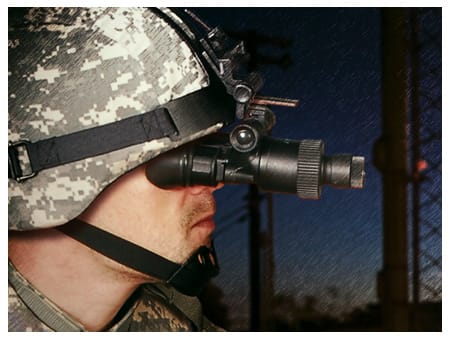

- Multi-purpose: Hand-held, head-mounted or helmetmounted

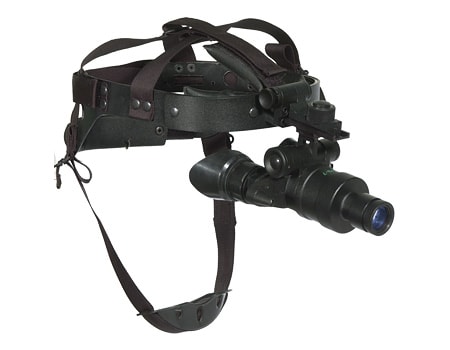

- Comfortable, flip-up headgear
- Multi-coated all-glass optics
- Wide angle infrared illuminator

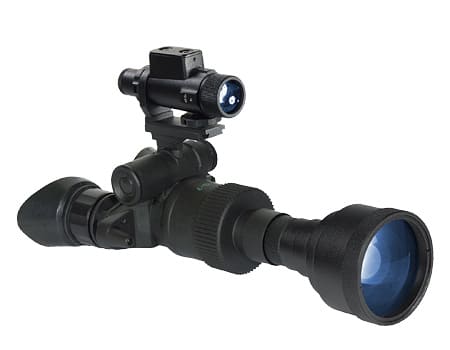

- Optional 3x, 5x and 8x lenses available
- Waterproof
- Limited Two-Year Warranty
Specification
Total Darkness IR System Yes SMART Technology No Multi-Purpose System No IIT Generation 3 Resolution 64 lp/mm Magnification 1x Lens System F1.2, 26 mm Proshield Lens Coating Yes FOV 40 Range of Focus 0.25 m to infinity Diopter Adjustment -5 to +5 Controls Digital Automatic Brightness Control Yes Bright Light Cut-off Yes Automatic Shut-off System Yes Infrared Illuminator Yes IR Indicator Yes (in FOV) Low Battery Indicator Yes (in FOV) Power Supply 1x1.5 V AA type battery or 1x3 V CR123A type battery Battery Life 50 hrs Environmental Rating Waterproof MIL-STD-810 Complies Operating Temperature -40 to +50C Storage Temperature -50 to +70C Warranty 2 years
