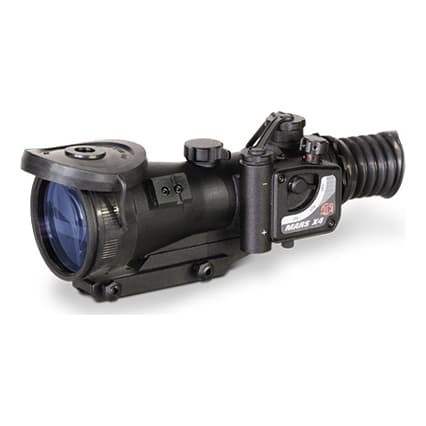

ATN MARS4x-WPT Night Vision Weapon Sight NVWSMRS4WP

3rd Gen. Image Intensifier Tubes
Battle proven Generation 3 technology. Our Gen. 3 units provide exceptional quality image resolution under varying light conditions. The units with 3rd Gen. Image Intensifier Tubes have a typical resolution of 64 lp/mm and a typical Signal-to-Noise Ratio of 20.

Description

ATN Mars Night Vision Weapon Scopes - the worlds largest line of professional Night Vision Sights – has a flagship – the ATN MARS4x-3. Inspired by ATNs quest for technical perfection and named after the Roman God of War, the ATN MARS4x-3 NV Riflescoperepresents the absolute latest in the world of Night Vision Equipment.
Similar to all of the ATN Aries Scopes, the ATN MARS4x-3 features only the purest grades of heavy glass and computer-aided optical designs to create multi-element, high-speed, multi-coated lenses for ultra-fast light transmission and resolution beyond current military standards.
All optical lenses on the ATN MARS4x-3 are individually fitted and calibrated to achieve optimum performance.

Features

• Superior quality Multi-coated all-glass optics
• Precision windage and elevation adjustments
• Tactical digital remote control
• Waterproof and submersible to 66 feet for 1 hour
• Included mount for Picatinny or 7/8" Weaver-style rail
• Unit accepts either, (1) 3V CR123A or (1) AA battery
• Nitrogen-purged for resistance to internal fogging
• Free Mil-spec hard case included
• Limited Two-Year Warranty

Specification

Total Darkness IR System	Yes
SMART Technology	No
IIT Generation	3
Resolution	64 lp/mm
Magnification	4x
Lens System	F 1.5, 108 mm
Proshield Lens Coating	Yes
FOV	9
Exit Pupil	7 mm
Eye Relief	45 mm
Range of Focus	10 m to infinity
Diopter Adjustment	-5 to +5
Controls	Direct
Remote Control	Yes
Automatic Brightness Control	Yes
Bright Light Cut-off	Yes
Infrared Illuminator	Detachable IR450
IR Indicator	Yes
Low Battery Indicator	Yes (in FOV)
Power Supply	1x1.5 V AA type battery or 1x3 V CR123A type battery
Battery Life	55 hours (3 V) 40 hours (1.5 V)
Reticle System	Red or Amber on Green
Windage & Elewation Adjustment	1/4 MOA
Environmental Rating	Waterproof
MIL-STD-810	Yes
Operating Temperature	-51 to +45C
Storage Temperature	-55 to +70C
Dimensions	235x90x95 mm 9.3"x3.5"x3.7"
Weight	1.3 kg / 2.9 lbs
Warranty	2 years

Manufacturer Part No: NVWSMRS4WP

• IIT Generation: White Phosphor Technology
• Total Darkness IR System: Yes
• Field of View: 9
• Exit Pupil: 7mm
• Dimensions: 235x90x95mm (9.3"x3.5"x3.7")
• Weight: 1.3 kg / 2.9 lbs
